| Product Specification |
| Panel size | 23'' 35'' |
| Panel Details | brightness | 150-800nits |
| aspect ratio | 16:3/16:5 |
| Video Format | MPG,MPG-1,MPG-2,MPG-4,AVI,MP4,DIV,RM,RMVB,etc. |
| FHD 1080P Video | YES |
| Decoding Formats | Picture Format | JPG, BMP |
| Text | TXT(UTF-8 format) |
| Audio Format | MP3, WAV |
| Version 1 | Quad core 8G internal memory,HDMI,VGA input,USB,SD
slot,WIFI,LAN,3G/4G optional |
| Version 2 | Dual core 4G internal memory,HDMI,VGA input,USB,SD
slot,WIFI,LAN,3G/4G optional |
| Version 3 | Quad core 8G internal memory,HDMI,VGA input,USB,SD
slot,WIFI,LAN,3G/4G optional |
| Android Network version | Version 4 | Dual core 4G internal memory,HDMI,VGA input,USB,SD
slot,WIFI,LAN,3G/4G optional |
| Standalone version | Version 5 | HDMI,VGA input,USB,SD slot,4GB internal memory |
| Version 6 | USB,SD slot,4GB internal memory |
| Version 7 | i3 4G RAM 500GB HDD,WIN7 OS,flexible config |
| PC version | Version 8 | i5 8G RAM 500GB HDD,WIN7 OS,flexible config |
| Version 9 | i7 16G RAM 500GB HDD,WIN7 OS,flexible config |
| Program Update | Manual update |
| Playlist | YES |
| Break-point Memory | YES |
| Speaker | YES,2 x 2W and 2 x 5W optional |
| General Information | Support Scroll Caption | YES |
| Calendar | YES |
| Inter-cut | YES, fixed time inter-cut |
| Anti-theft | YES |
| Auto-power on& off | Auto-power on& off |
| Optional Functions: Open frame ,Touch screen, Motion sensor |
| Accessory | Power supply cable, user manual, remote control, keys |
| Temperature Details: Touch screen operating temperature: 41°C
~70°C,Storage Temperature: -50°C ~85°C |
| The machine operating temperature:-4~65°C,Storage
Temperature:-7~65°C. |
| Features: |

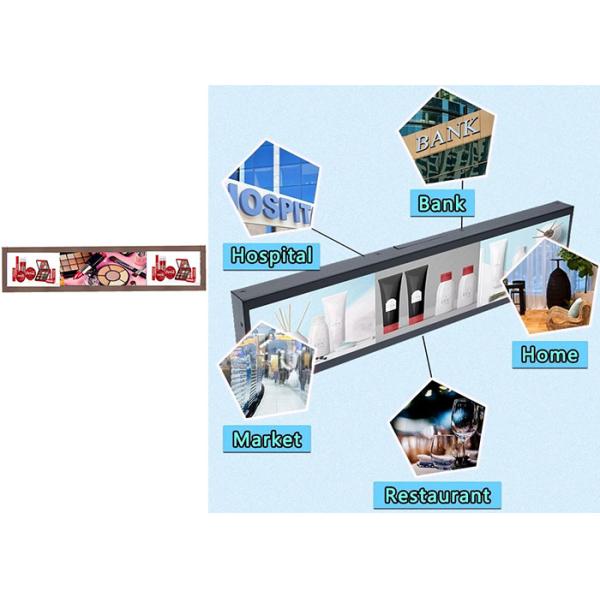

| 1. Application fields:public places ,for example,shopping mall,
restaurant,airport, square, commercial buidings,etc. |
| 2. Outer shell is made of extra good quality metal material, which
is painted by powder-spray craft work. |
| 3. Support shockproof and dust proof function. |
| 4. Adopts high transparent tempered glass (4-6 mm ) as protection
layer toprevent lcd/led panel being broken or distorted. |
| 5. Locking system for anti-thieves, prevented the storage devices (
SD/CF cards ) from being stolen. |
| 6. Support IR Remote controller, user can use remote controller to
operate the whole lcd. ( key buttons is optional ) |
| 7. Build-in speakers: 2 x 5W. Amplifier / 3.5mm audio jack is
optional. |
| 8. Playing circles automatically when powers on . |
| 9. Allowing memory of breakpoint/AD management system. |
| 10. Automatically generating playing list/Mixed displaying of
videos,images and music. |
