46'' 49'' 55'' 60'' 65'' Screen Size Optional Seamless 500cd/sqm
Brightness Indoor LCD Video Wall
Description:
1. 42, 46, 49, 55 inches optional
2. Professional high-end splicing display panel and industrial
components
3. Professional display solution, exquisite picture quality
4. Supports 24/7/365 working non-stop
5. Ultra-narrow edge connective, patchwork between the display
areas 1.8/3.5/3.8/4.9/5.5mm
6. Leading splicing technology, it integrates multi-screens
controller/processor
7. Rapid response recognition technology ensures that it is not
interrupted or distortedly when watching high-definition and
full-motion video

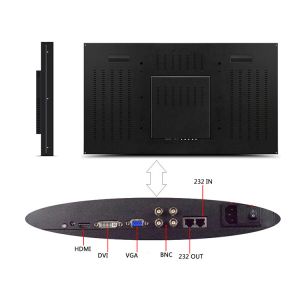

8. HDMI/VGA/DVI/AV many kinds of input and output interfaces
ensures the product application with maximum compatibility and
flexibility
9. Applications: shopping malls, cinemas, restaurants, bars,
security monitoring, conference centers, schools, press releases,
banks, exhibition halls, stations
Specifications:
| LCD Video Wall Screen |
| Specifications |
| Panel Size | 43 46 49 50 55 inch LED LCD screen |
| Narrow Bezel Optional | 1.8mm/3.5mm/5.5mm/8mm/10mm/12mm Optional |
| Max Resolution Support | 1920×1080(H×V) |
| Pixel Pitch | 0.53025×0.53025 |
| Brightness (nits) | 500cd/square meter |
| Contrast | 4000:01:00 |
| Visual Angle (H/V) | 178° / 178° |
| Contrast | 4000:01:00 |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| Image |
| Aspect ratio | 16:9 |
| Quality compensation technology | LTI,CTI |
| Motion compensation technology | AUTO MOVE |
| Filter | 3D comb filtering, digital noise reduction |
| Video starnard | PAL,NTSC |
| Video Wall Controller(Built-in each Screen) |
| Digital signal input | HDMI×1; 1920x1080@60Hz backward compatible |
| Computer signal input | VGA(DB-15) ×1;1920x1080@60Hz backward compatible |
| Digital signal input | DVI(DVI-I)×1;1080P(1920×1080) backward compatible |
| Composite Video Input/(AV) | CVBS(BNC)x1 |
| Composite Video Output | CVBS(BNC)x1 |
| RJ45 | 4 |
| USB | 1(optional) |
| Computer centralized control interface | RS232 |
| Power |
| Power Supply | AC100V~240V |
| Maximum Power Consumption | 230W |
| Structure |
| Shell material | Metal shell, anti-static,anti-magnetic,anti-strong electric field
interference |
| Installation way | Wall mount, floor standing mount,hanging mount |
| Temperature |
| Working temperature | 0℃~50℃ |
| Storage temperature | -20℃~65℃ |
| Working Humidity | 10%-90% |
| Features |
| 1.Automatic adjustment of backlight and refresh rate for extended
life |
| 2.Exclusive software plus black technology to ensure image
reproduction is realistic |
| 3.Intelligent wireless control is convenient for high-definition
image switching |
| 4.3D digital noise reduction, HD high definition |
| 5.Embedded structural design patent |
Application:
LCD large screen splicing system is currently used in military
command and control centers, government agencies, corporate
multimedia video conferencing display systems, traffic management
command centers, city management emergency command centers,
production scheduling control centers, mining production safety
monitoring centers, shopping malls, hotels, communication
information display systems, financial securities information
display systems, public security and fire fighting, weather and
marine flood prevention command centers, brand store image display
system, etc
FAQ:
1.Q: Are you a factory?
A: Yes, we are a factory, we have our own production line. We are
in Shenzhen, welcome to our factory for a visit .
2.Q: what's your products' quality control?
A: Our tenet is Quality first. We pay much attention to the
beginning till the very end of the production. Our products have
passed the I S O 9 0 0 1,, ISO14001, C C C etc. certification.
3.Q: What's your after-sale service?
A: We can offer 100% guarantee on our product. under normal use,
one year warranty
4.Q: What's your MOQ?
A: Generally, our MOQ is 1 pcs. But the greater the quantities ,
the bigger the discount .
5.Q: Could you offer the OEM service?
A: Yes, we can provide the OEM service if our customer requested.
6.Q: How about the delivery?
A: The delivery would be with in 3-15 days according to the order
quantity and size of the items.
7.Q: What are your advantages?
A:(1)We specialize in the research, production and sales ,so our
price is reasonable and our service is professional .
(2). Low defectives and timely service. The defectives of our
products seldom appear , if quality problem, we give spare part or
new replacement free of charge.
